How to Change the Tail Light on your Nissan Versa

Posted on May 16, 2011 by mike

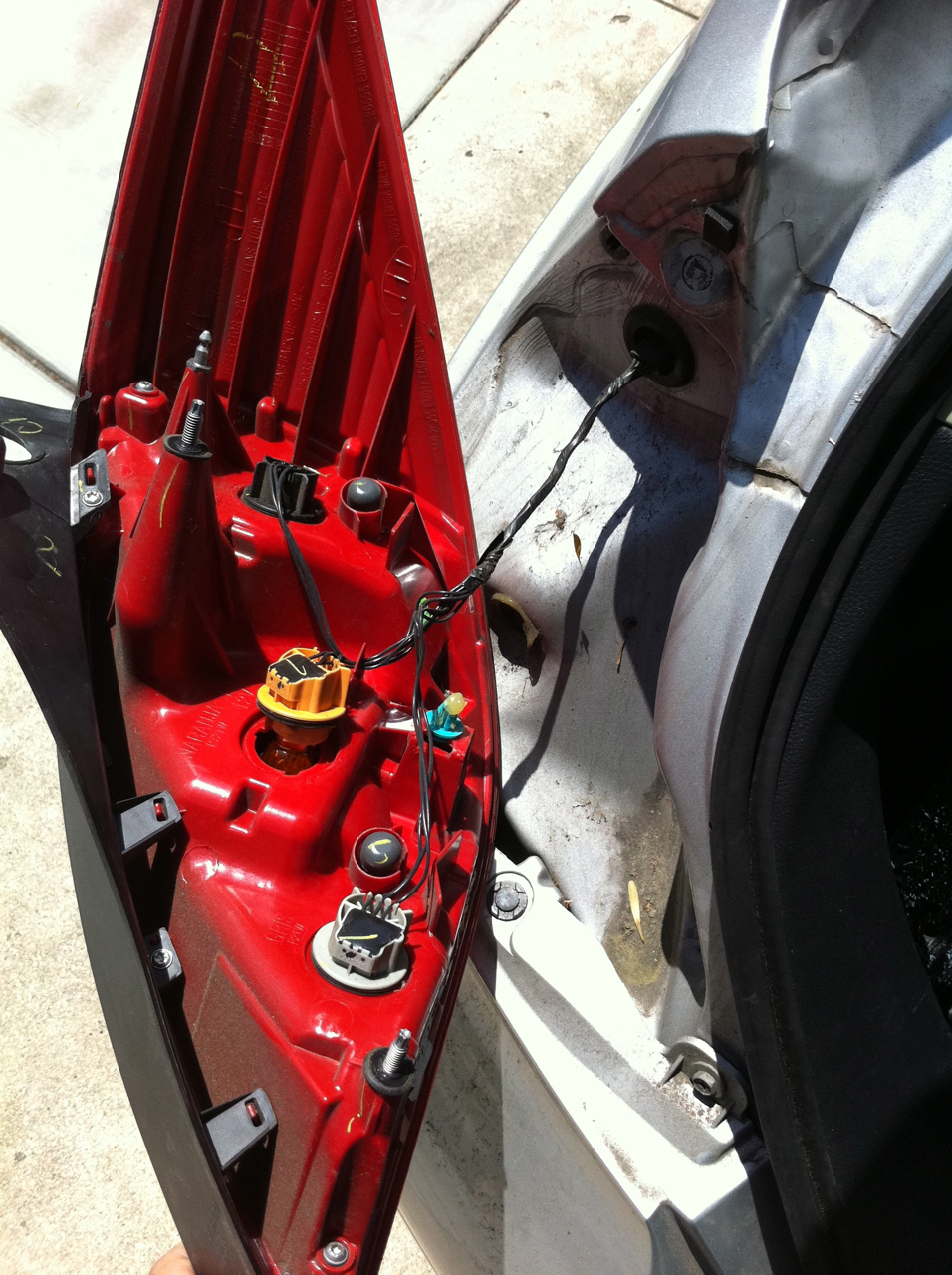

Versa Tail Light - Removed — Once removed, the bulbs are accessible for changing. Replace by following the steps in opposite order.

A few days ago a friend asked me to help change a burnt out tail light on her Versa hatchback. Sure, piece of cake, right? Well, Nissan had other plans, and made it a little tricky. Here’s a step-by-step guide to getting into your rear lamp console.

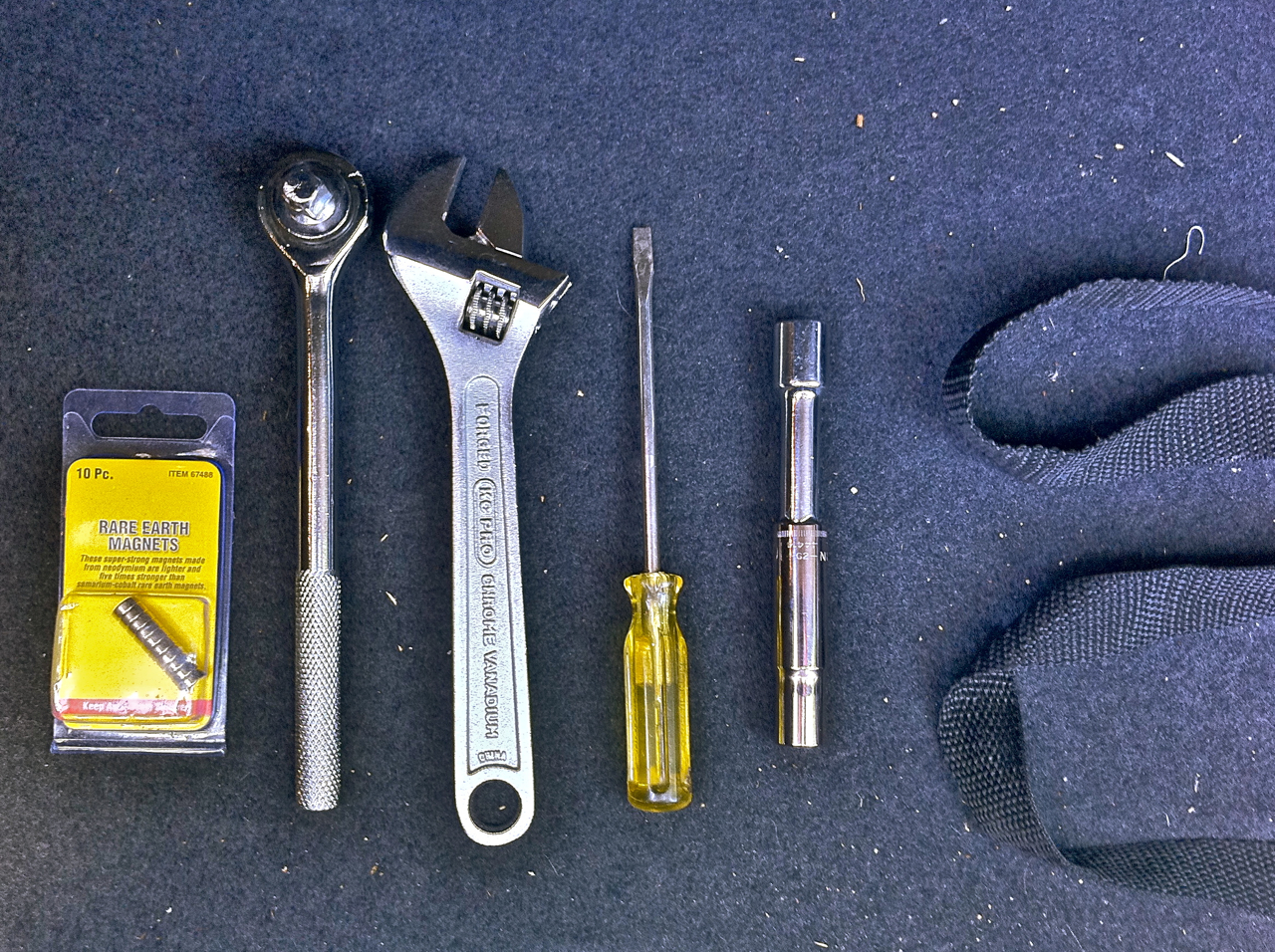

These are the tools needed to pull the tail light cluster – 10mm deep socket (with extension), ratchet, 10mm (or adjustable) wrench, flathead screwdriver, nylon strapping, and magnets

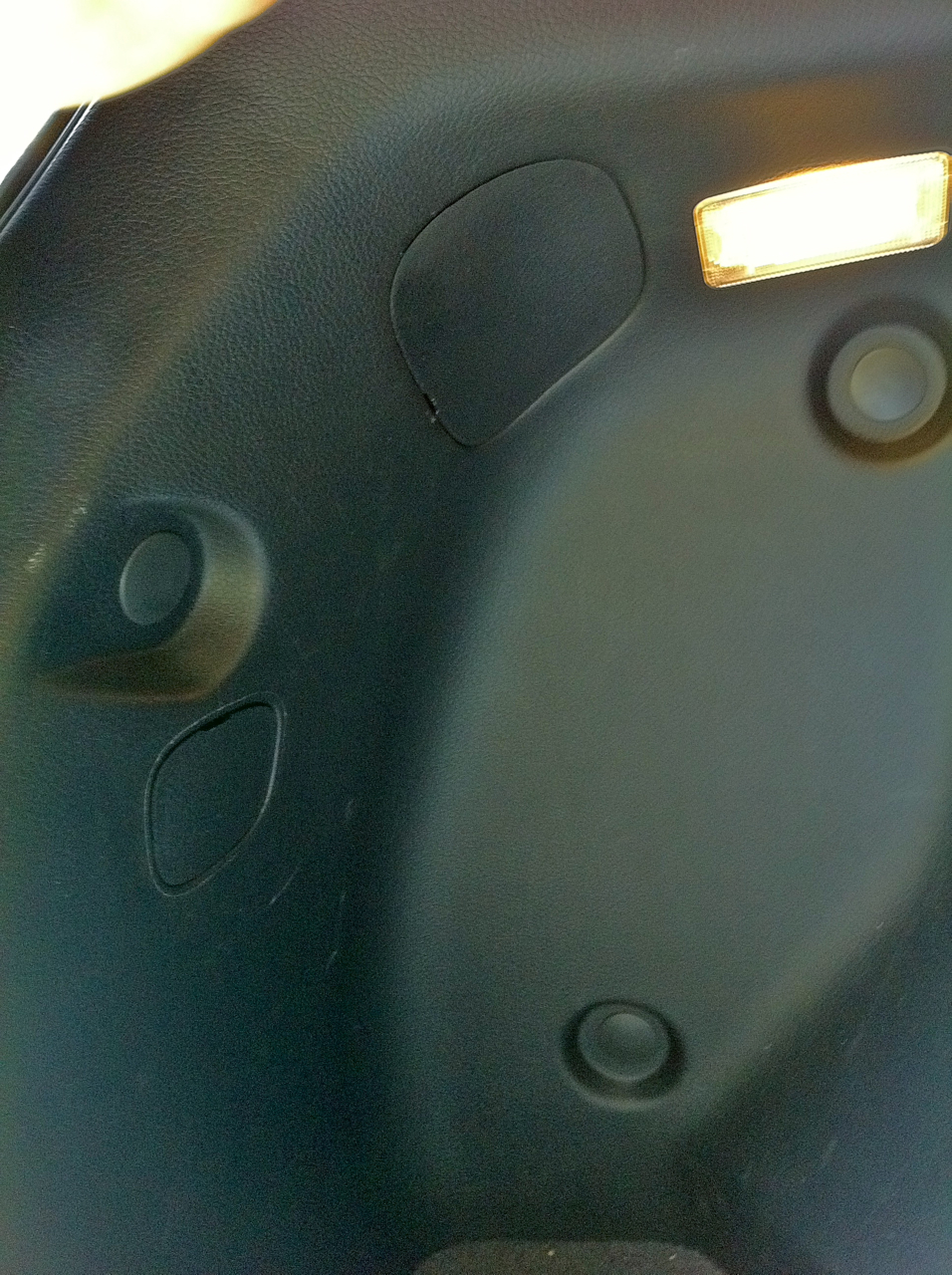

Using the screwdriver, remove these two covers. Use a cloth underneath to keep from scuffing the plastic.

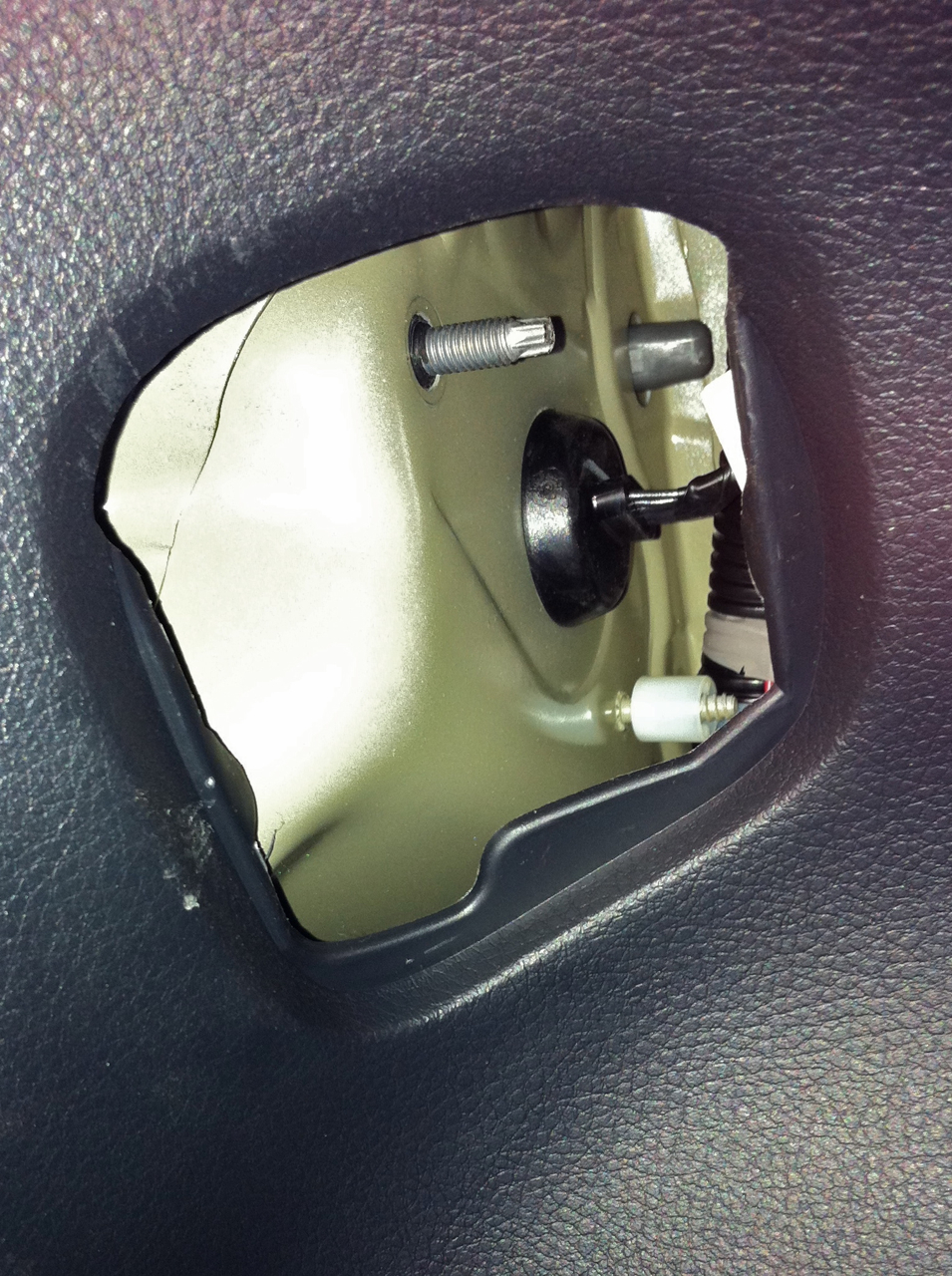

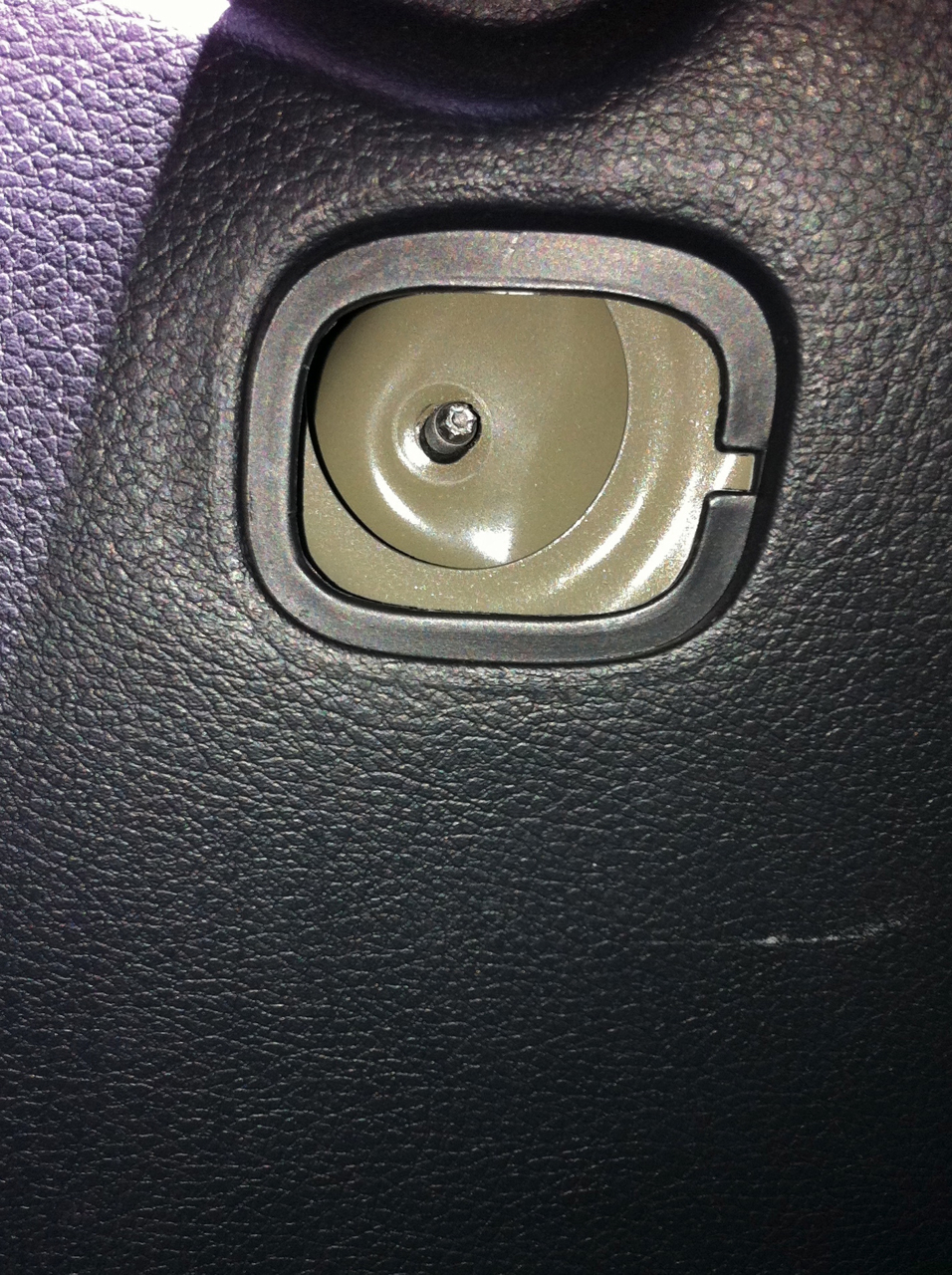

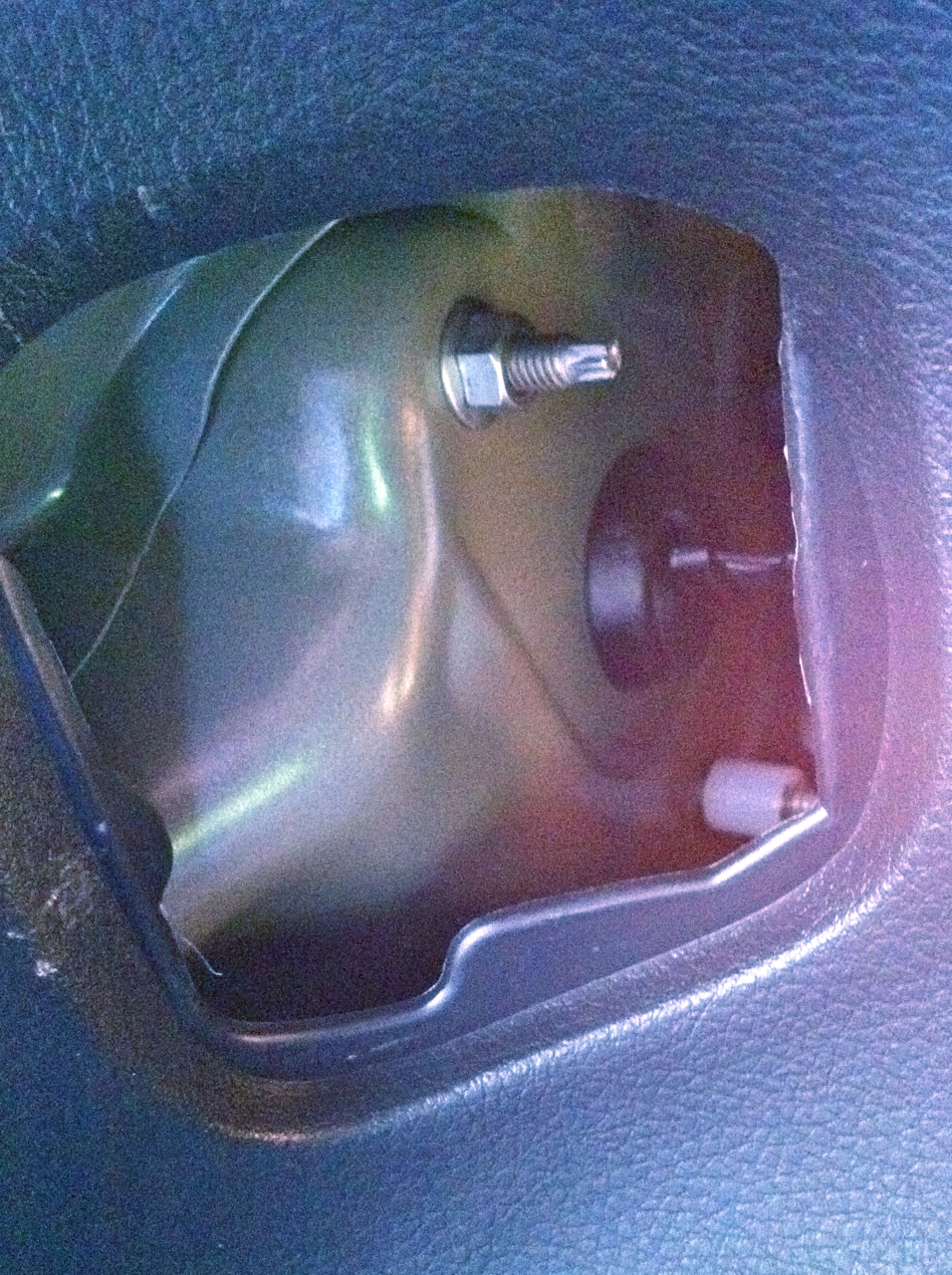

Each cover will reveal a screw/nut combo that needs to be undone. One in each area. The upper access point needs to be loosened with a 10mm wrench. Use the magnets to help keep the nut from falling into the gap between the body and plastic shroud.

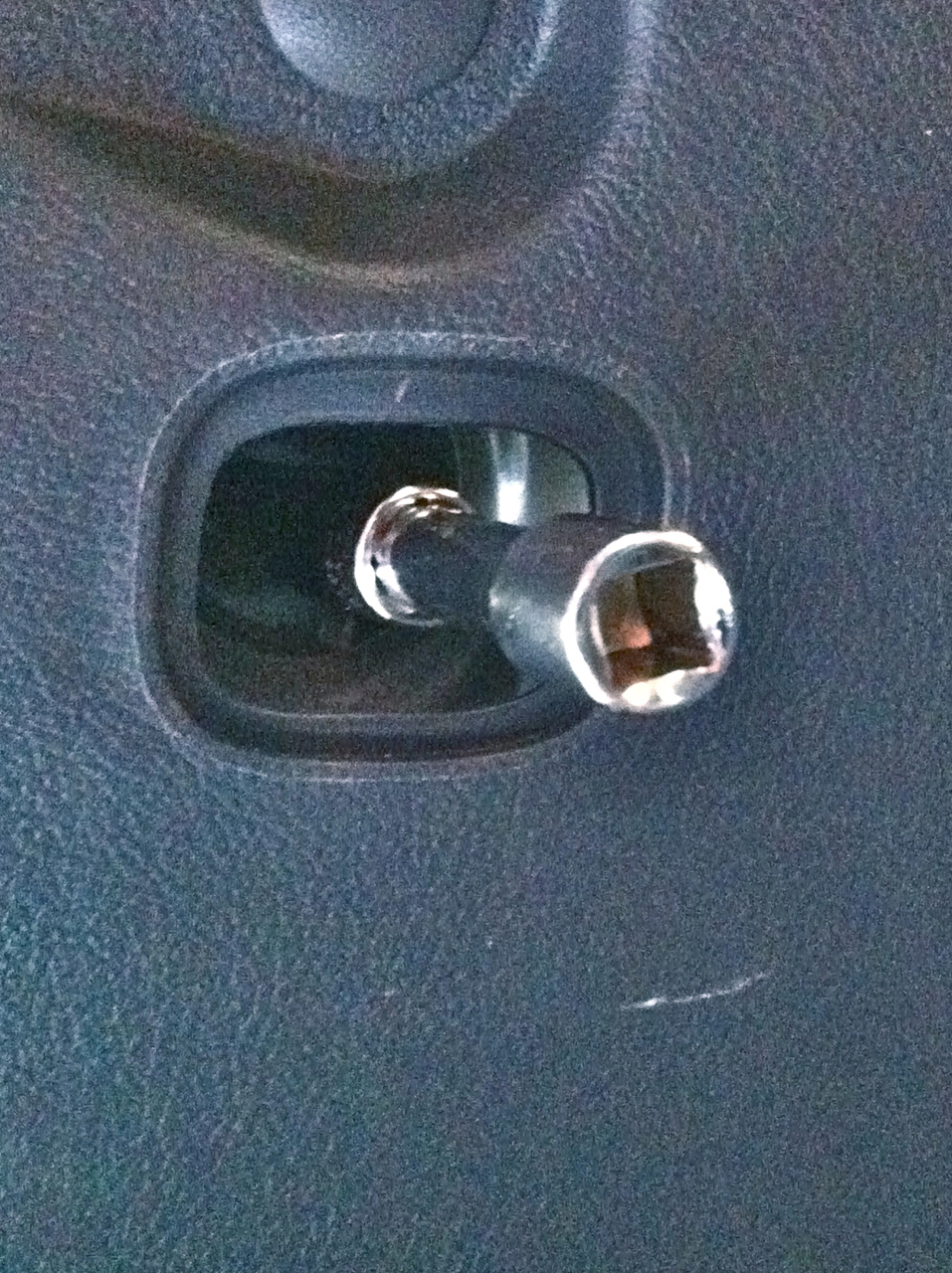

The lower access area’s nut can be removed with a socket and extension. Again, careful to not drop the nut when undoing it.

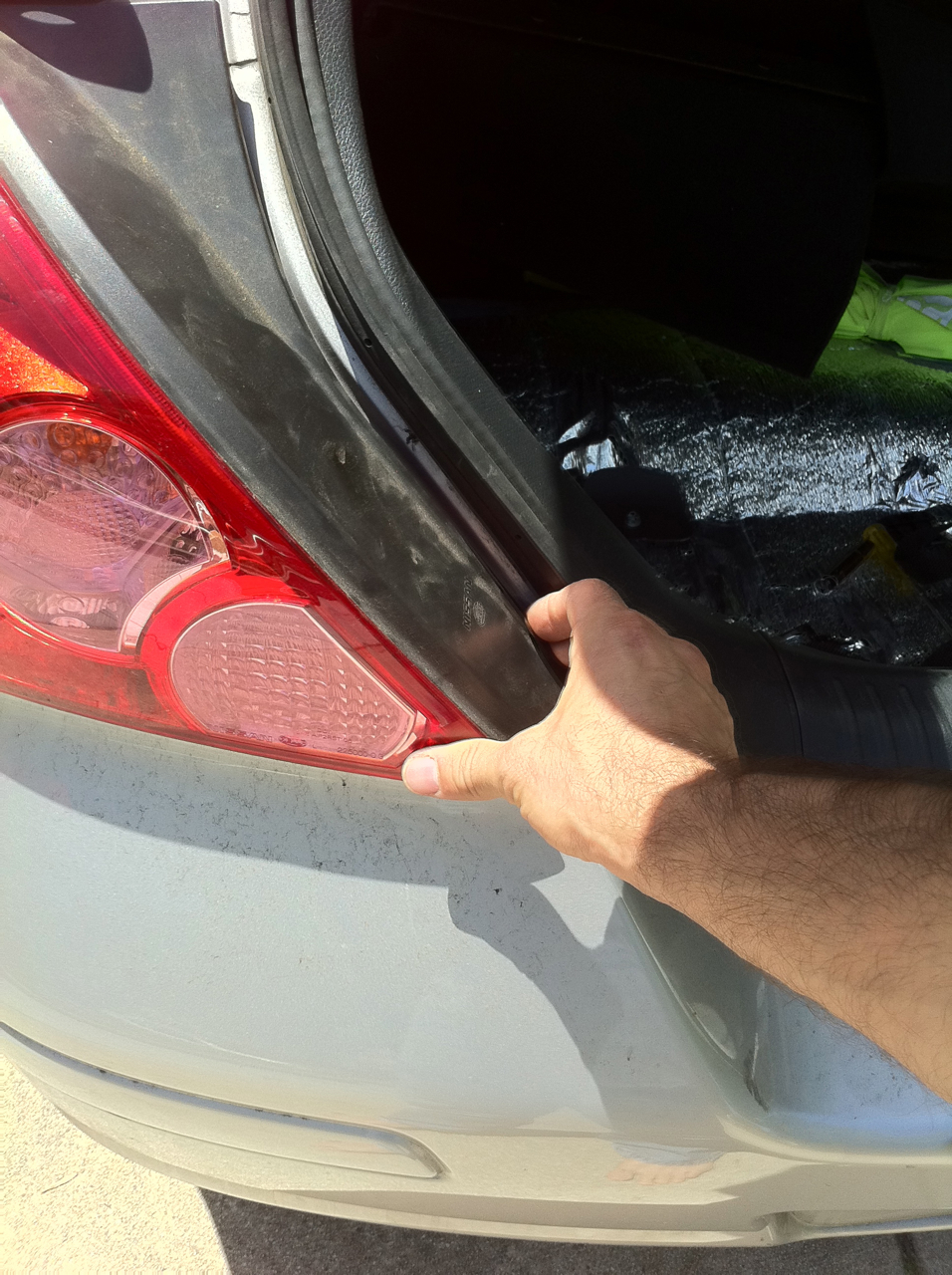

After you’ve removed the two nuts, you can start to pull the cluster outwards. Most likely, you’ll need two follow the next step as well to disengage it completely.

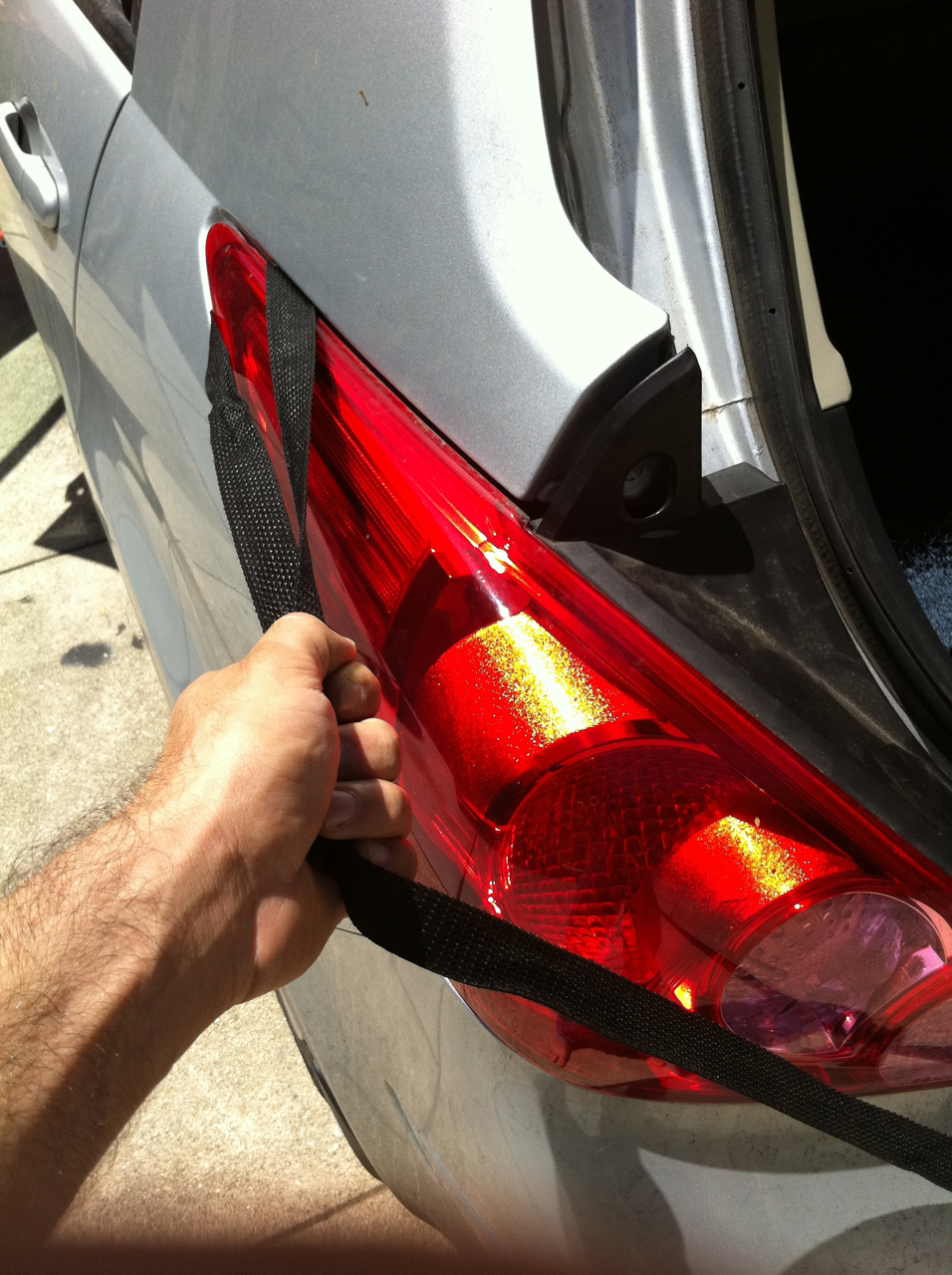

Aside from the two screws, the lighting cluster has a snap and bracket that hold it in place. To slide it free, slip a nylon strap behind it and pull backwards (while using the other hand to pull the opposite side backwards)

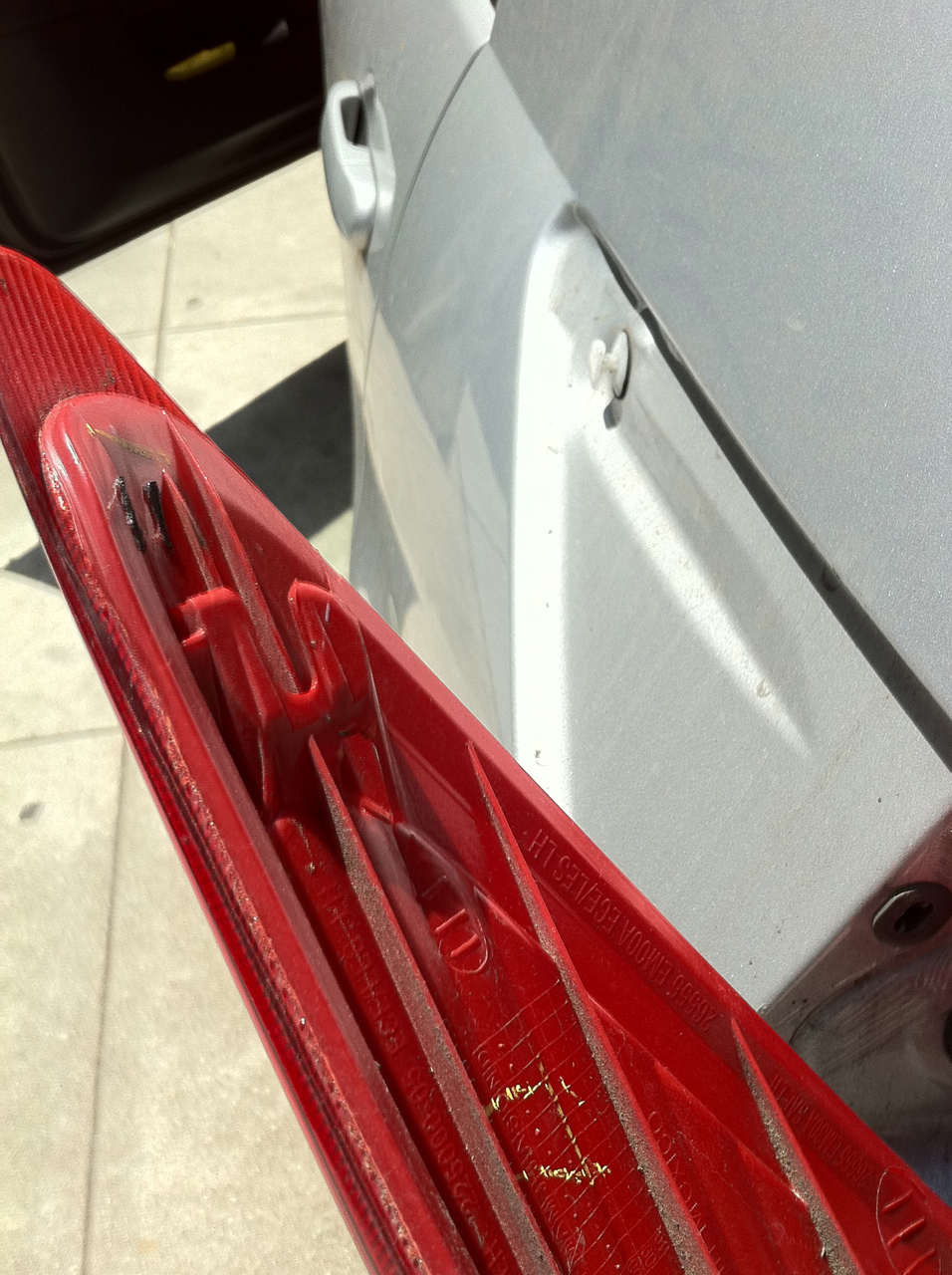

This is the bracket and post that you’ll slide the cluster free from.

Once removed, the bulbs are accessible for changing. Replace by following the steps in opposite order.

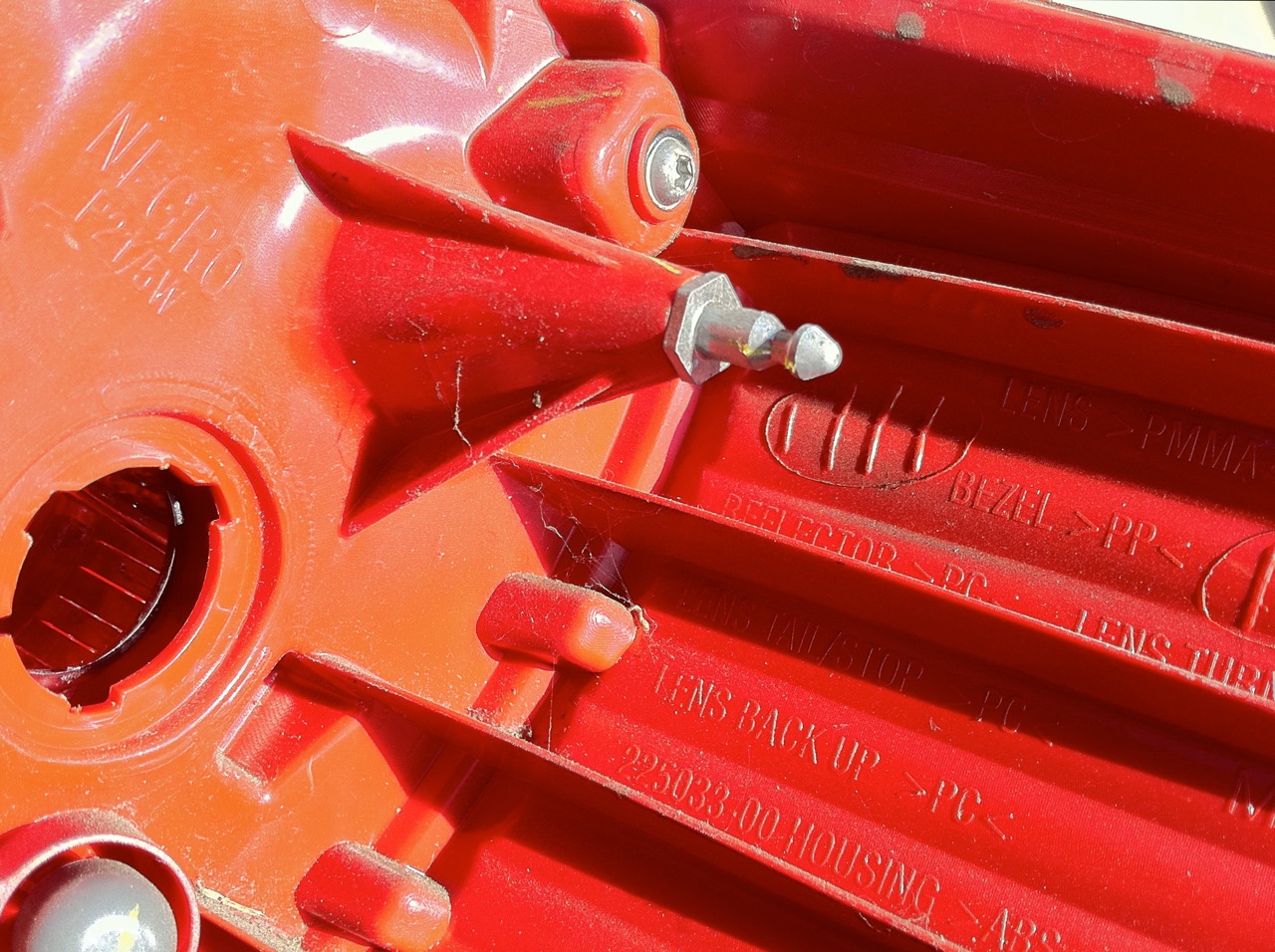

This is the snap that clips the light into place.
